Excavator

We offer a varied selection of options

Black Cat Wear Parts is the ultimate solution for all your needs regarding OEM replacement or customized design edges.

Our wide range of products includes:

OEM Replacement or Custom Design Edges
Weld-in Bucket Base Edges
Straight or Serrated Bolt-on Edges
Wide Range of Teeth and Adaptors

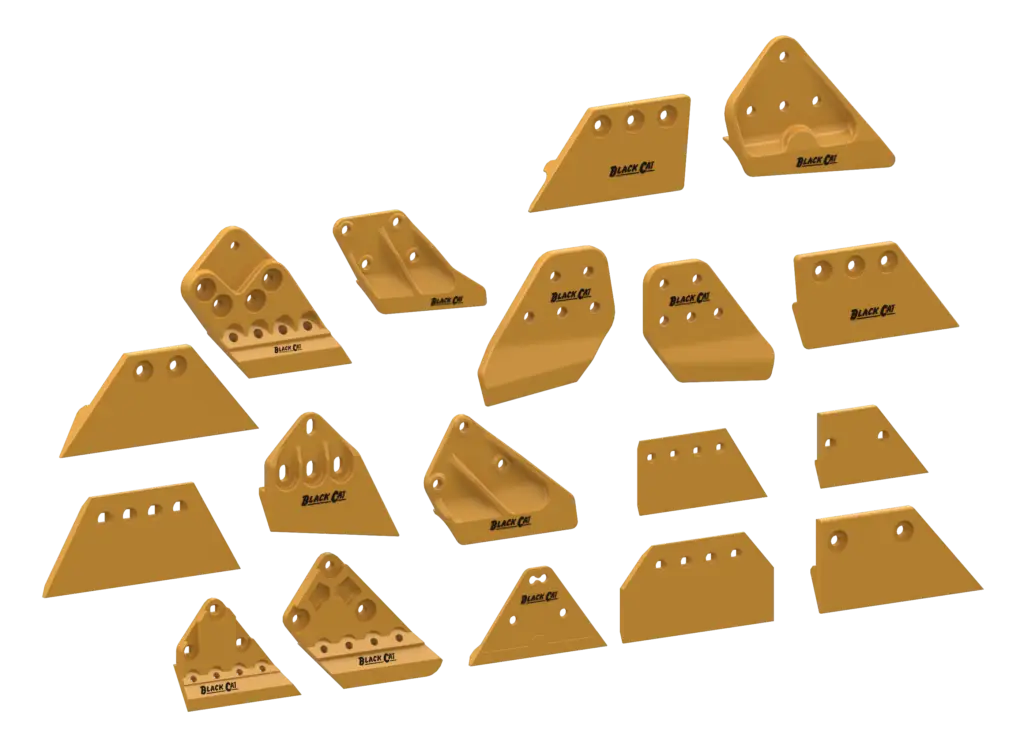

Side Cutters and Strike-Off Plates
Weld In Corners
Wear Bars
Safety Steps

Trust us to provide the highest level of quality and precision in all our products.

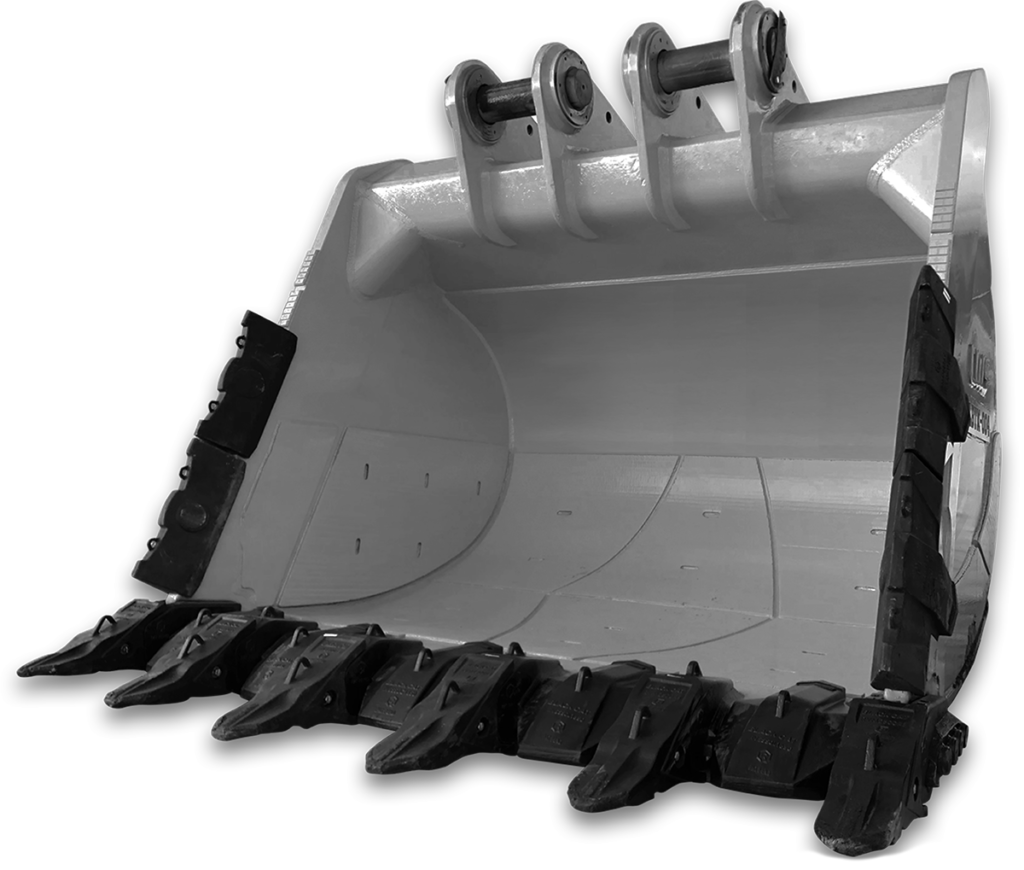

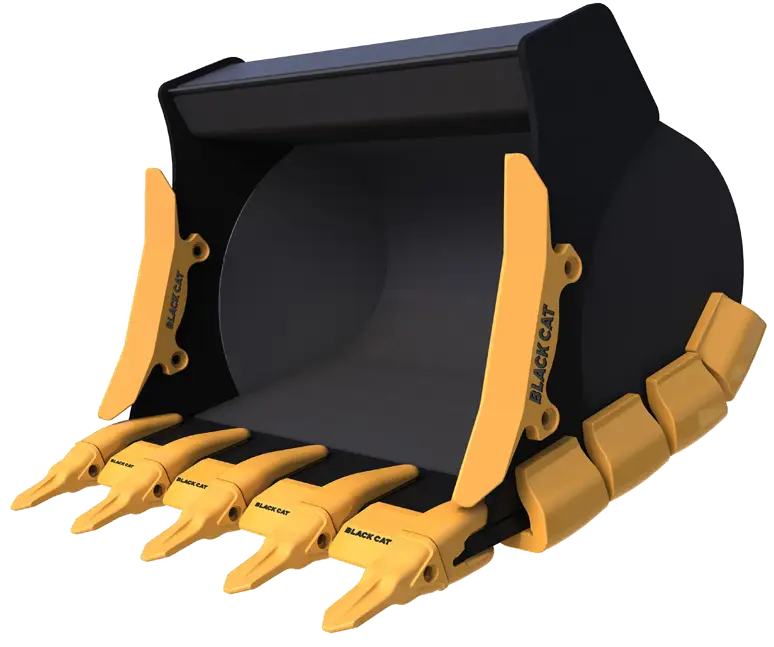

BUCKET PROTECTION

LIP, HEEL AND CORNER PROTECTION BROCHURE – 920.0824

Sidebar Protection Brochure

RVJ Sidebar Protection Brochure

Weld-on Heel Shrouds protect high-wear and impact locations on a bucket, protecting the equipment.

Corner Protectors protect high-impact locations of the bucket, extending life of the bucket.

Black Cat Cast Alloy Lip Shrouds provide maximum wear and protection for the bucket lips.

Sidebar Protectors mount to the sides of the bucket. Adapter plates and shroud extensions are available.

Mounted Wear Plates provide extra protection to the bucket wall.

EXCAVATOR BASE EDGES

While excavators are a generic product line on the surface, there are a number of options and accessories to consider. Most excavator buckets have with a single bevel flat weld-on edge along with a handful of weld-on adapters evenly spaced along the width of the bucket (or length of the edge).

Depending on the size of the bucket and the application it is working in, these weld on edges vary in thickness up to 3”, up to 24” wide and generally come in lengths from 12” up to 96” and longer, though any combination is possible.

We offer industry standard bevels, as well as customized bevels and noses to match any adapters.

EXCAVATOR CUTTING EDGES

Bolt-on edges, which have been common in Western Canada for a number of years, are starting to gain wider acceptance.

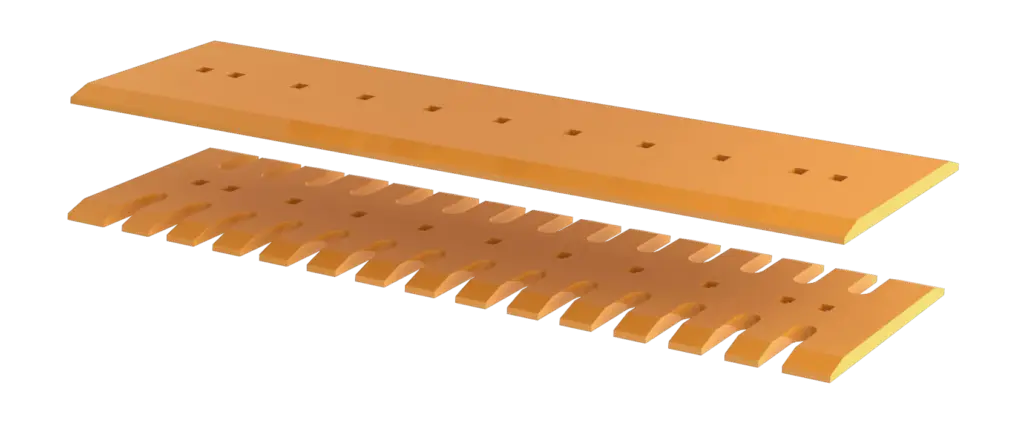

These bolt-on edges are available in a standard straight edge for looser material as well as a serrated version which offers increased penetration like a tooth and adapter arrangement while maintaining the smooth floor of a flat edge.

Bolt-on arrangements are commonly available in a one-piece or three-piece systems, 7/8” through 1-1/2” thick and 13” or 16” wide.

Base edges on existing buckets can be modified to accept these bolts on edges or Black Cat can produce a pre-drilled version to meet the requirements of any excavator bucket.

REPLACEMENT TEETH AND ADAPTORS

Black Cat Wear Parts Ltd. produces after market replacement products designed to work with specific third party wear part systems. Reference to ESCO, Super V, SV2 and other third party trademarks referred to in this publication are for informational, comparative, and descriptive purposes only. Black Cat Wear Parts Ltd. does not claim any ownership in or license to use any third party trademarks referred to in this publication and is not affiliated with, nor does it make, use or sell any products manufactured by any owner of such trademarks.
